ACCESSORIES

J-Systems has been designing and building unique IP video solutions for the mobile, fixed outdoor and portable outdoor world for over 25 years.

These custom solutions cover both mechanical, electronic, wireless (cellular & WiFi) and firmware integrations.

Over the years, our customer base has included large construction firms, large military integrators, sea ports, government agencies (FBI & USDA), laboratories, and many other markets.

Systems we design and build are generally made to operate in the harshest environments from the top of the Canadian Rockies to the jungles of South America.

Projects normally include a design / scope phase, prototype build & test phase, and if needed, a production phase.

We always work in a very collaborative manner with our customers to assue them that they will end up with a system that meets their mission requirements.

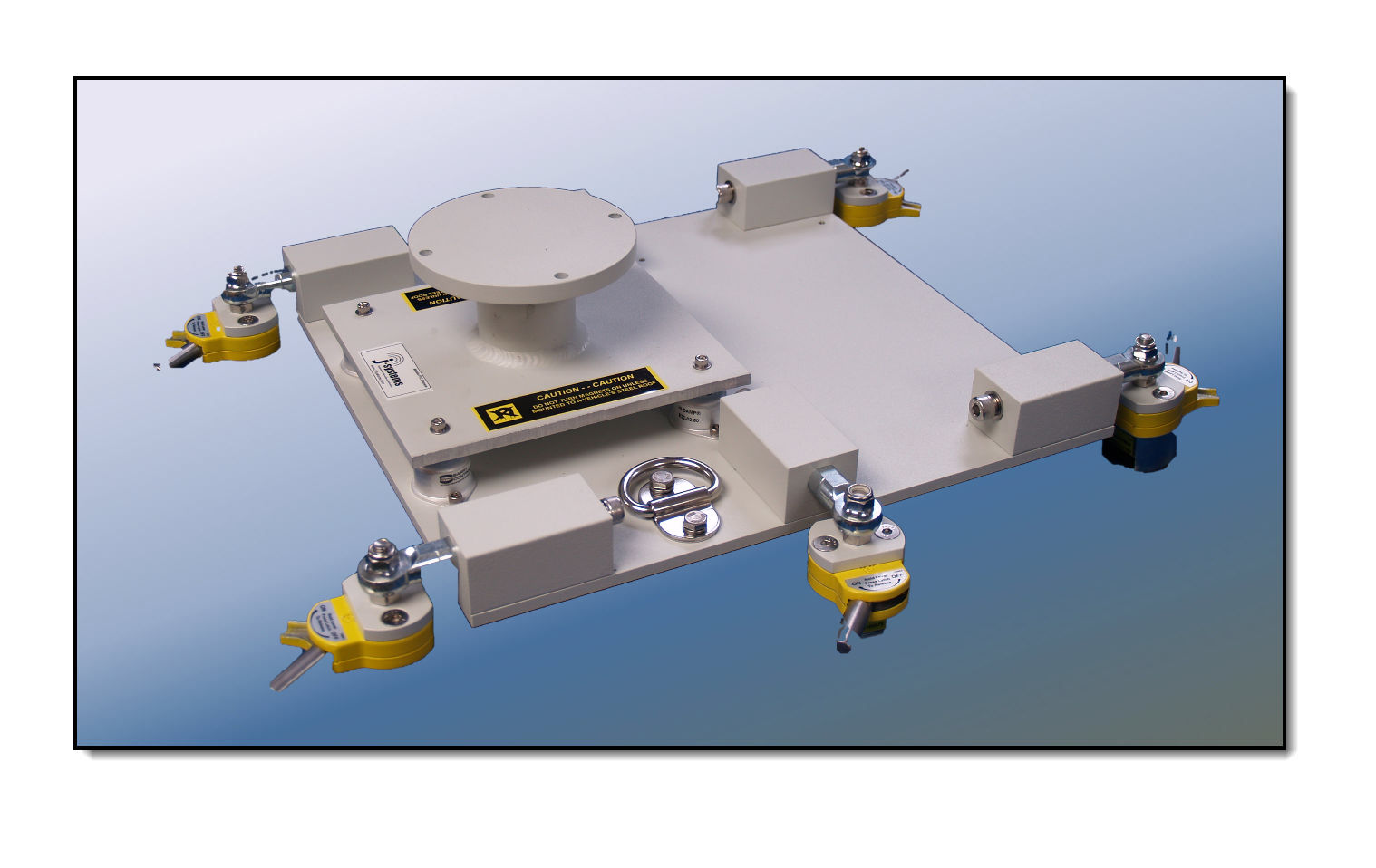

The Mobile Mount is a unique, one-of-a-kind mounting platform designed to be easily attached to the roof of a vehicle

Originally designed for the USDA, it was used to hunt wild boars that were destroying levies and farm land. The USDA version included a PoE powered JPTH-13M Pan-Titl head with a thermal camera. This system included a joystick in the vehicle cab to control the Pan/Tilt, spotting laser, and LED spotlights. A unique microprocessor controller was designed for this specific application

Other configurations include a bank of high intensity LED spotlights or a high magnification box camera.

When used with specialty cameras, there are many applications for off-road field uses such as search and rescue and power line inspection as part of a preventative maintenance program.

This platform features ON-OFF magnets for easy mounting to the vehicle roof as well as easy removal.

Give us a call at 630-627-3458 to discuss your application.

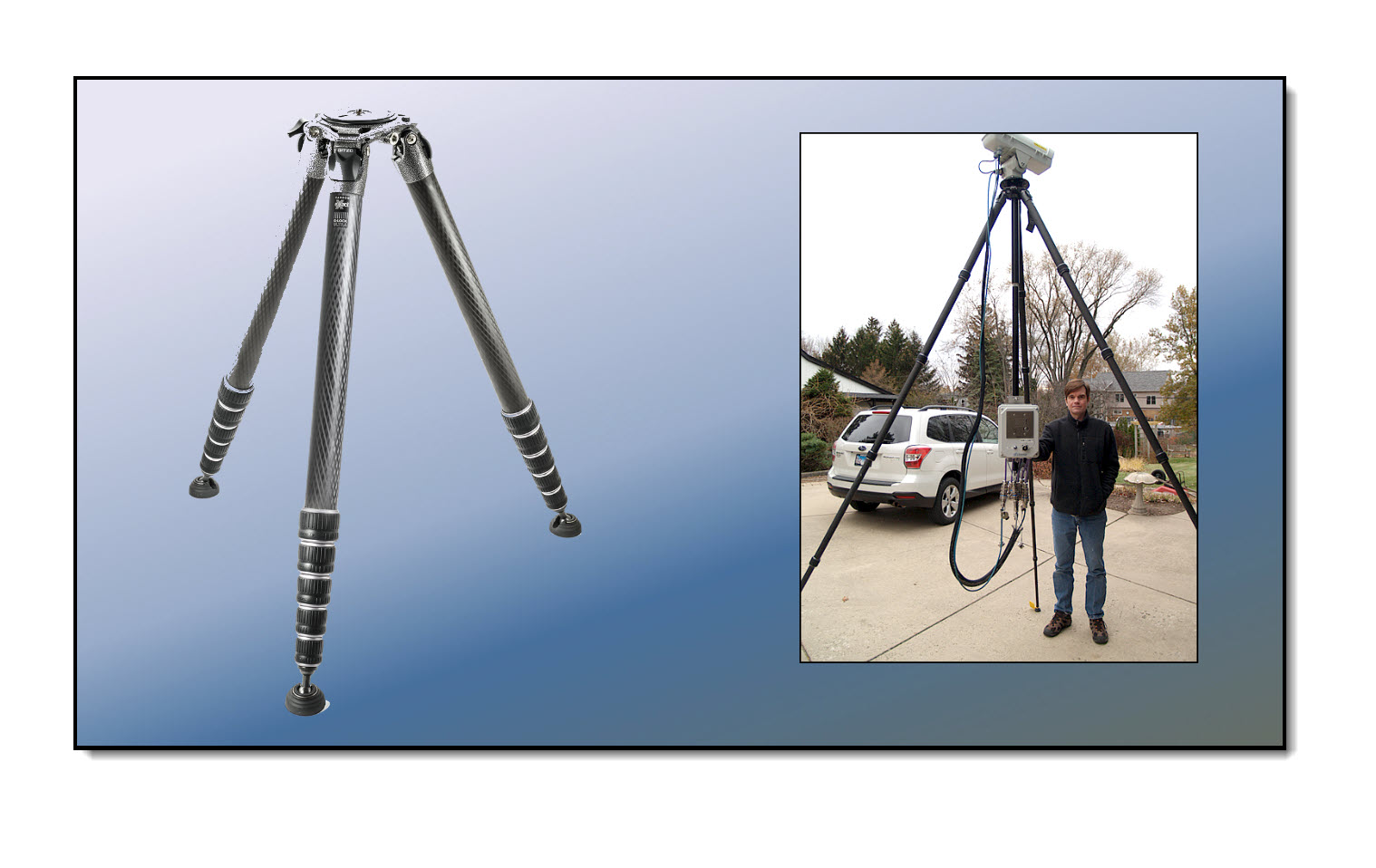

Carbon fiber tripods are light weight, strong, very portable, and can elevate a Pan/Tilt head with a camera or antenna up to 9 feet.

J-Systems has used these tripods extensively on multiple projects. They are relaible and easy to deploy.

An anodized CNC machined tripod adapter has been designed to allow a JPTH-13MPoE Pan/Tilt head to be securely attached to the tripod. This adapter provides extra guy wire tie down points.

The tripod can be configured with various types of feet from soft rubber to pin points to secure the tripod to the terrain.

Additionally, the tripod leg angles are adjustable to further allow stable usage on uneven terrain.

Various tripod sizes are available, please call 630-627-3458 for help.

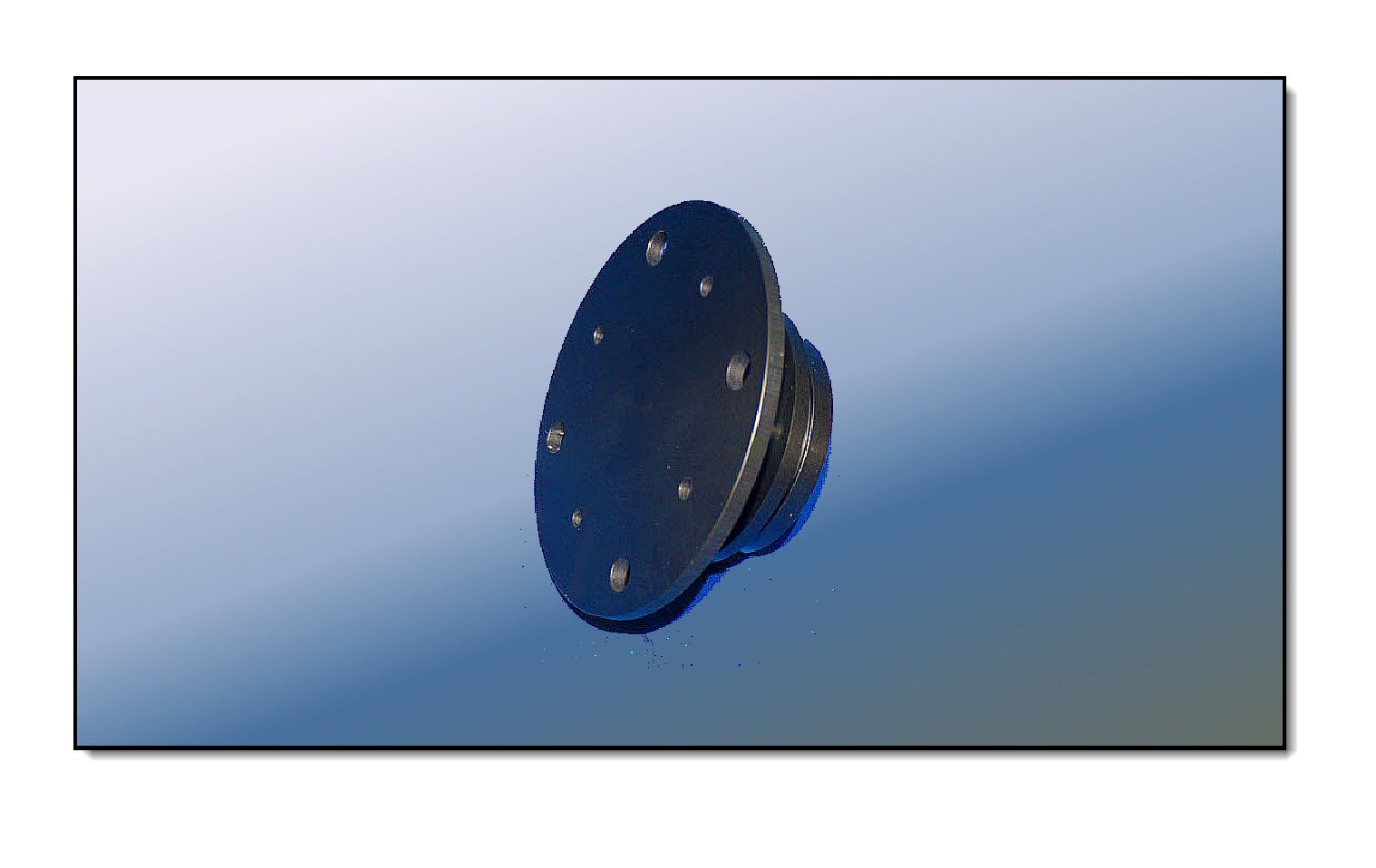

Black anodized, CNC machined tripod adapter for our carbon fiber tripods

Includes four larger outer perimeter holes for optional guy rope tie downs.

A center threaded hole is available for an optional center tie down / support mast to mount other equipment to.

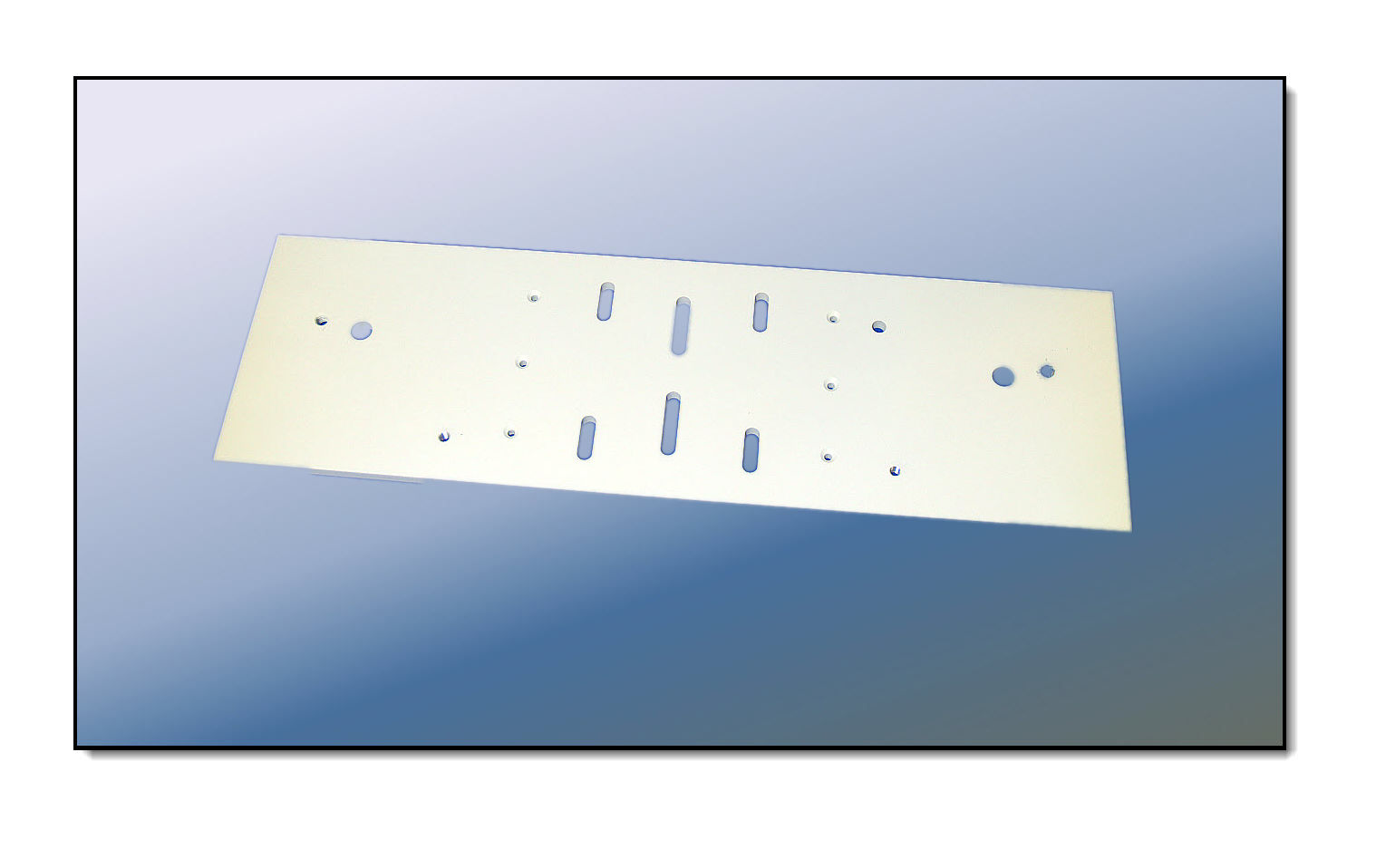

This optional Aluminum top plate for the JPTH-13MPoE Pan/Tilt positioner allows for the mounting of other hardware such as LED spotlights or IR illuminators.

Being able to mount auxilary equipment under this top plate allows the JPTH-13MPoE to carry more weight even with a camera on top.

These plates can be custom designed for your specific needs or you can use the generic plate and drill your own holes.

The plate is the same thickness as the original smaller top plate and is pwder coated.



The main brackets shown are a wall mount and pole mount adapter. These were designed to support the JPTH-13MPoE Pan/Tilt head. These are powder coated Aluminum.

Over the years, J-Systems has designed numerous brackets for various projects. While these are not stocked items, they represent our ability to design and fabricate what is needed for any project.

In the near past, J-systems designed a complete Aluminum tripod system that was modular and could be field assembled without any tools.

When we start to design brackets and mounts, these are created in CAD and then 3D printed to confirm the overall design intent has been met. After that, CAD files are sent to the machine shop to create a small pilot run of first article parts.

If you need quality brackets made in the USA, please give us a call at 630-627-3458 to discuss.
